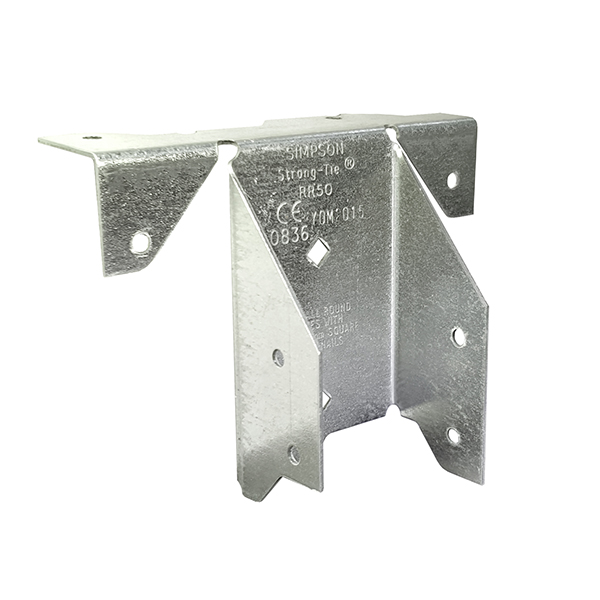

The RR ridge rafter connector provides alignment control and correct nailing locations. The RR47 may be used with any rafter slope up to 30°. Galvanised for corrosion resistance.
For back-to-back installations, the minimum width of the ridge plate is 38mm. Secure in place using 3.75 x 30mm square twisted nails.
Measurements (Ref. image 3):
A: 47mm
B: 83mm
C: 33mm
D: 114mm
t (Thickness): 1.2mm
Fixing Holes:
Header: 4mm (x4)
Joist: 4mm (x4)
